TSYH220H Crawler Dozer Truck Bulldozer Heavy Equipment 14Mpa

Brand Name : XINXING CATHAY

Model Number : TSYH220H

Place of Origin : CHINA

MOQ : 1

Price : bargain

Payment Terms : L/C, T/T

Engine : QSNT-C235

Rated power : 175/1800

fuel consumpyion : ≤222

operation weight : 26100

ground contact length : 3480

ground pressure : 39

Contact Now

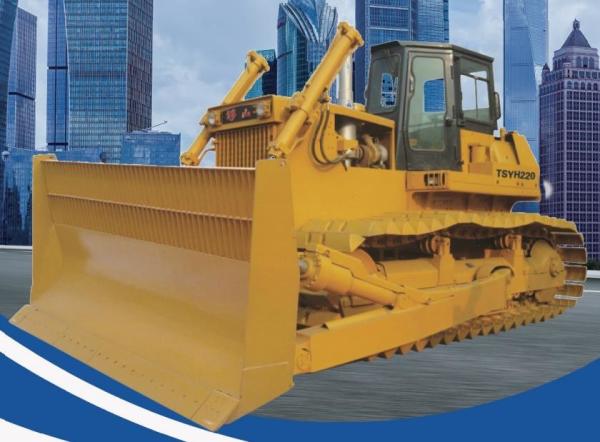

TSYH220H 14Mpa Crawler Bulldozer Truck Construction Bulldozer Truck

TSYH220H is a high-horsepower wetland liner, which uses an acid engine with strong power and environmental protection.

This machine has a new carbon-based blanket, such as driven ocean-moving bullets, which has obvious technical advantages compared with the industry fluorescent models. It has increased the root accumulation of Tuxer machine, silver people's pointing parts, and the performance of wetlands is better than that of similar products in the same industry.

Engine

 QSNT-C235

Rated power (Kw/rpm)

175/1800

Fuel consumption(g/KwH)

≦ 222

Max torque (NM/rpm)

1085/1300

Min.ground radium(m)

 4.1

Grade ability(°)

 30

Max.drawbar pull(KN)

 203
Operation weight(Kg) 26100

Forward(Km/H)

3.6/6.5/11.2

Reverse(Km/H)

4.3/7.7/13.2

Ground contact length (mm)

 3480

Shoe width (mm)

 910

Ground pressure (Kpa)

 39

Min.ground clearance (mm)

 515

Overall dimensions L×W×H (mm)

6060*4365*3402

Blade dimensions W×H (mm)

4365*1900

Blade digging angle(°)

 55

Blade max.tilt adjustment (mm)

 735

Blade max.ground clearance (mm)

 1300

Blade max.digging clearance(mm)

 550

Blade capacity (M³)

 15.8

Working efficiency (for 40m moving) (M3/h)

 331

System pressure (Mpa)

 14

1. Warranty time is 12 months.

2. Our after-sales engineers are experienced, they can make professional answers for the problems you may encounter, extend the life of trucks.We provide technical support for our trucks and whole life parts supply.

3. Tell us your shipping needs, our sales manager will customize the most suitable trucks for you according to your needs.
